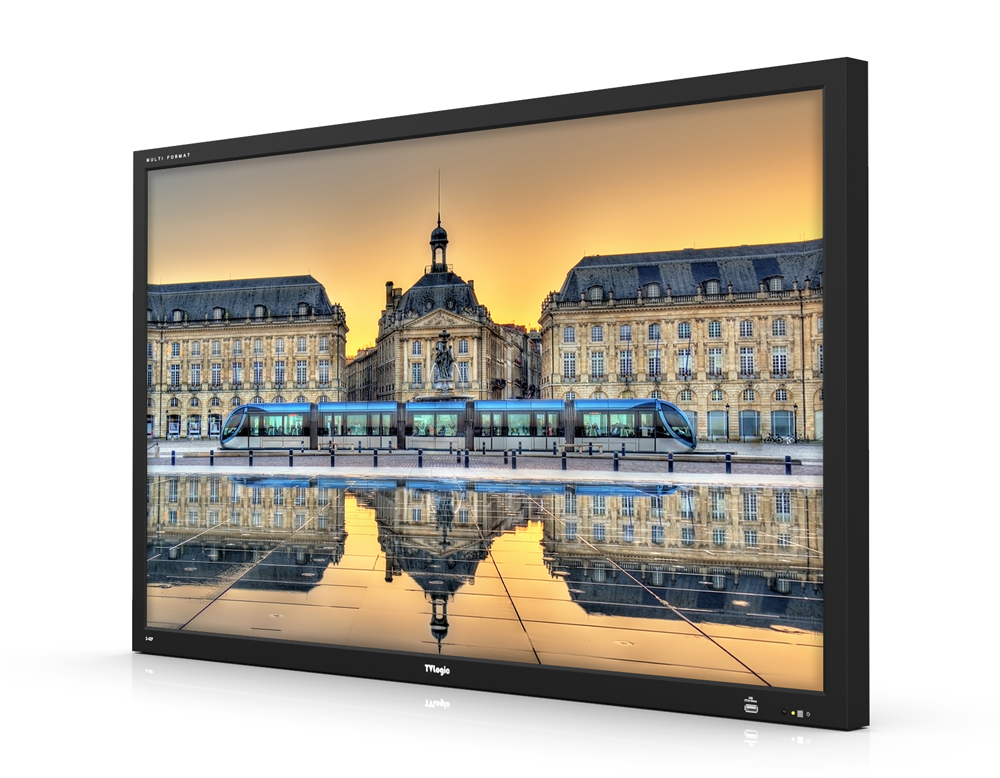

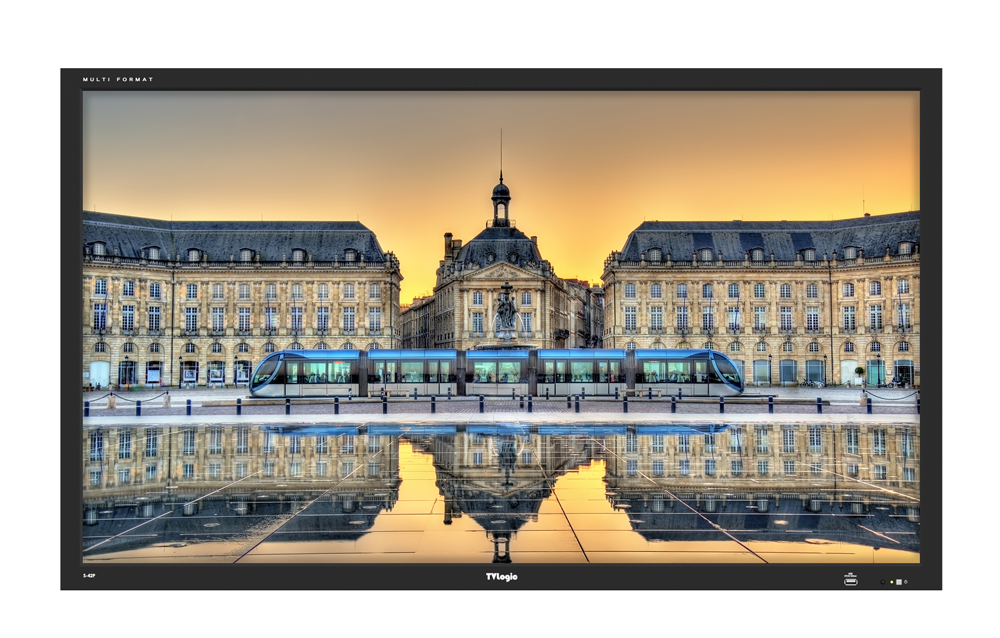

S-42P : 42" FHD演播室墙壁监视器,带SFP模块和Ember协议

S-42P是高对比度、宽视角的全高清工作室墙壁显示器。它支持各种视频格式,包括3G/HD-SDI、HDMI和DVI。可以支持SFP接口的多功能性。S系列通过Ember+协议提供网络控制,通过PQ、HLG和SLog3的HDR EOTF提供HDR仿真功能。
显示规格
尺寸 42"
分辨率 1920 X 1080 (16 : 9)
像素间距 0.4845(H) × 0.4845(W) mm
色深 1.06B(R/G/B 10bit, Dither)
可视角度 178°(H) / 178°(V)
亮度 450cd/m 2
对比度 4000 : 1
显示范围 930.24(H) × 523.26(V) mm

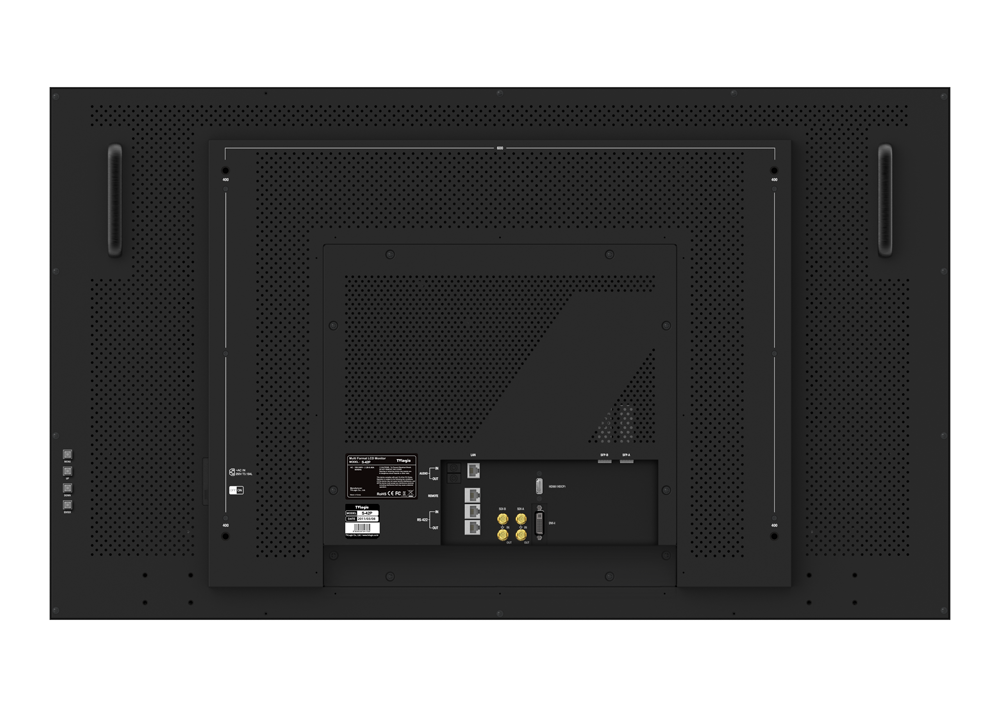

输入接口
2 X BNC SDI Input
1 x DVI - D DVI Input
2 x SFP In/Out (combined)
1 x HDMI HDMI Input
输出接口
2 X BNC SDI Output
输入信号
3G-SDI 2.970Gb/s
HD-SDI 1.485Gb/s
SD-SDI 270Mb/s
DVI VESA/IBM Modes
HDMI 1080p(60/59.94/50/30/25/24/23.98)/
1080i(60/59.94/50)/720p(60/50)/
480i(60)/480p(60)/576i(50)/576p(50)
SDI信号输入格式
SMPTE-2048 2048×1080p(24/24sF/23.98/23.98sF)
SMPTE-425M-A/B 1080p(60/59.94/50/30/29.97/25/24/23.98/ 30sF/29.97sF/25sF/24sF/23.98sF)
SMPTE-274M 1080i(60/59.94/50)
1080p(30/29.97/25/24/24sF/23.98/23.8sF)
SMPTE-296M 720p(60/59.94/50)
SMPTE-125M 480i(59.94)
ITU-R BT.656 576i(50)
音频
音频输入 Embedded Audio Analog stereo (Phone Jack)
电源
电源 DC 12V / AC 100 ~240V (50~60Hz)
电源功耗(Approx.) TBD
工作温度 0°C to 45°C (32°F to 113°F )
储存温度 --20°C to 60°C (-4°F to 140°F
附件 AC Power Cord / Remote Control / USB Cover / Stand
