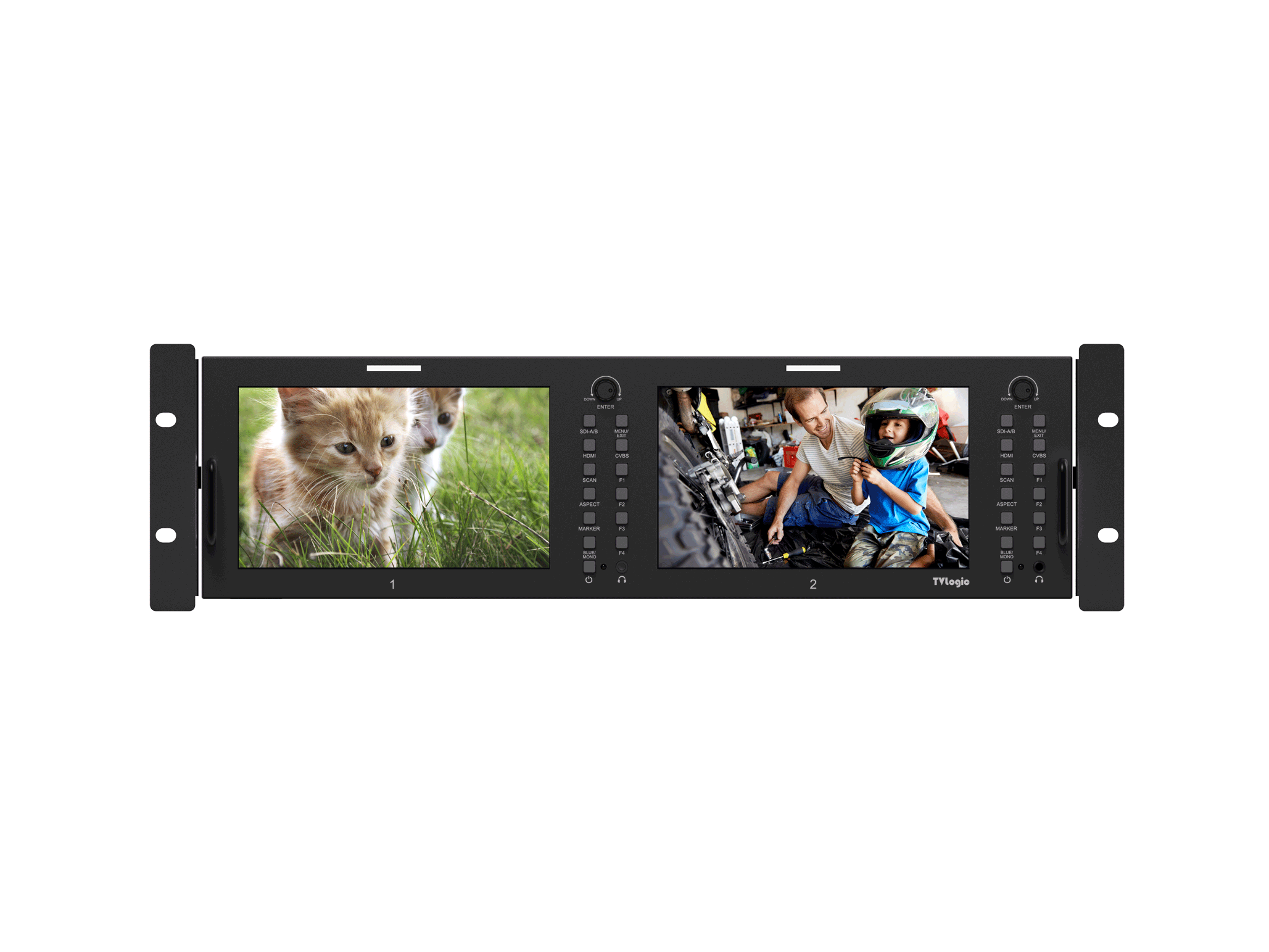

RKM-270A : 双联7” 液晶机架监视器
全新的机架安装显示器,配备 2 × 7 英寸 LCD 屏幕,具有与 LVM-074W 相同的高性能显示屏。宽视角 IPS LCD,分辨率为 1024 x 600。它支持 SDI 输入/输出和 HDMI 输入。
显示规格
| 尺寸 | 7" |
| 分辨率 | 1024 X 600 (16 : 9) |
| 像素间距 | 0.15mm |
| 色深 | 16.7M |
| 可视角度 | 160°(H) / 160°(V) |
| 亮度 | 400cd/m 2 |
| 对比度 | 800 : 1 |
| 显示范围 | 154(H) x 90(V) mm |
输入信号
| 1 X BNC | Analog Input (Component) |
| 2 X BNC | 3G-SDI A/B Channel Input |
| 1 X HDMI | HDMI Input |
输出信号
| 1 X BNC | 3G-SDI Output |
音频
| Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Out | Analog stereo (Phone Jack) / Internal Speaker (Mixed Mono) |
FPGA 功能
| 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Mono, Range Error, Time Code Display, UMD, Various Scan Modes, Waveform/Vector, Zoom |
Closed Caption
| CC-608 ANC, CC-608 LINE 21, CC-708 |
校准
其他功能
| USB | Firmware update by USB cable Firmware update by USB memory stick |
| Ethernet | Ethernet Control support |
| Conversion | SDI-to-SDI |
