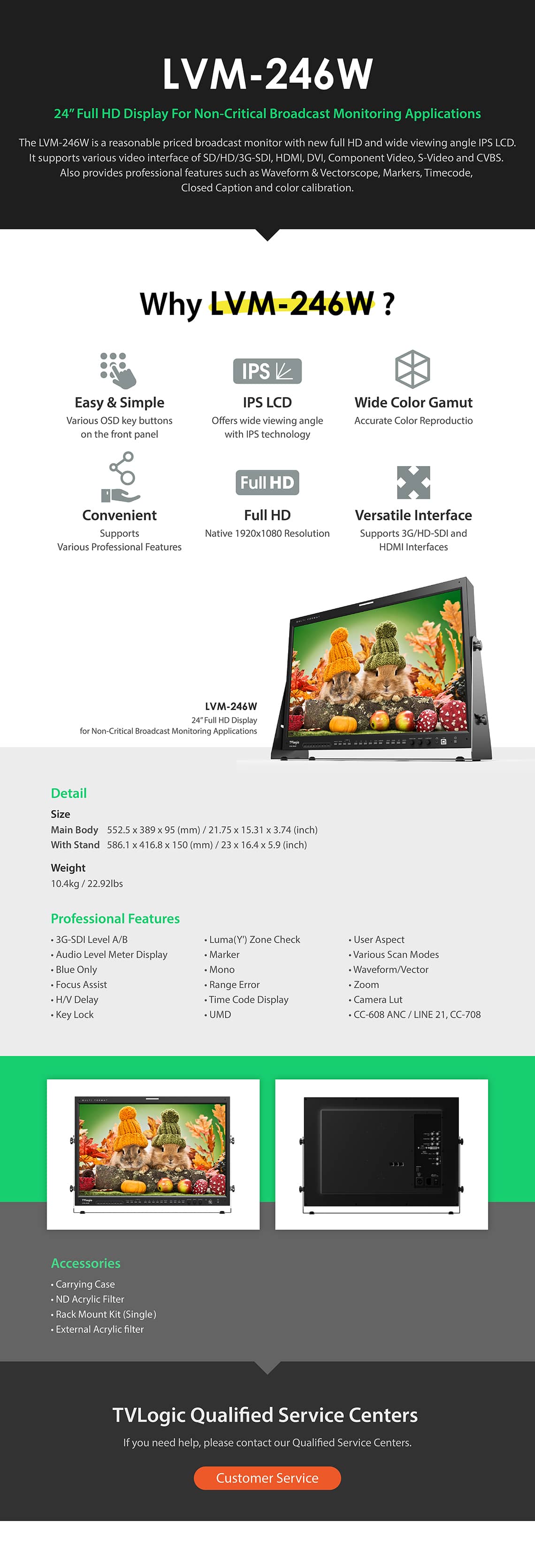

LVM-246W : 24” 全高清专业液晶监视器

LVM-246W 是一款价格合理的广播监视器,配备全新的全高清和宽视角 IPS LCD。它支持 SD/HD/3G-SDI、HDMI、DVI、复合视频、S-Video和 CVBS 的各种视频接口。还提供专业功能,如波形和矢量示波器、标记、时间码、闭合字幕和颜色校准。
显示规格
尺寸 24"
分辨率 1920 X 1200 (16:10)
像素间距 0.270mm
色深 16.7M
可视角度 178°(H) / 178°(V)
亮度 250cd/m 2
对比度 1000 : 1
显示范围 518(H) x 324(V) mm
输入信号
3 X BNC Analog Input (Component)
2 X BNC 3G-SDI A/B Channel Input
1 X HDMI HDMI Input
1 X DVI Analog & Digital RGB
输出信号
3 X BNC Analog Output (Component)
1 X BNC 3G-SDI Output
音频
Audio In Embedded Audio/Analog Stereo (Phone Jack)
Audio Out Analog stereo (Phone Jack) / Internal Speaker (Stereo)
FPGA 功能
3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, Zoom
Closed Caption
CC-608 ANC, CC-608 LINE 21, CC-708
校准
TVLogic Color Calibration Utility
其他功能
REMOTE TVLogic’s specification
USB Firmware update by USB cable
Ethernet
Conversion SDI-to-SDI
可选配件
Carrying Case, External Acrylic Filter, ND Acrylic Filter, Rack Mount Kit(Single)
Product Brochure (1 Page) -
Manual Download
Leaflet -
Total Brochure Download
