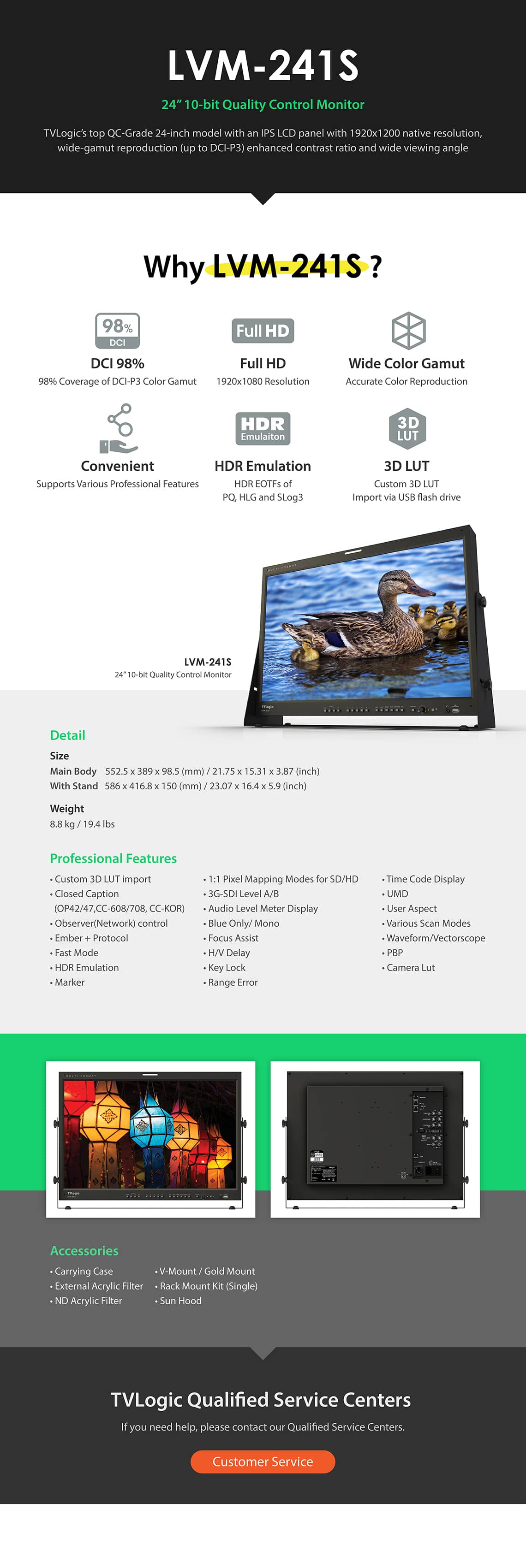

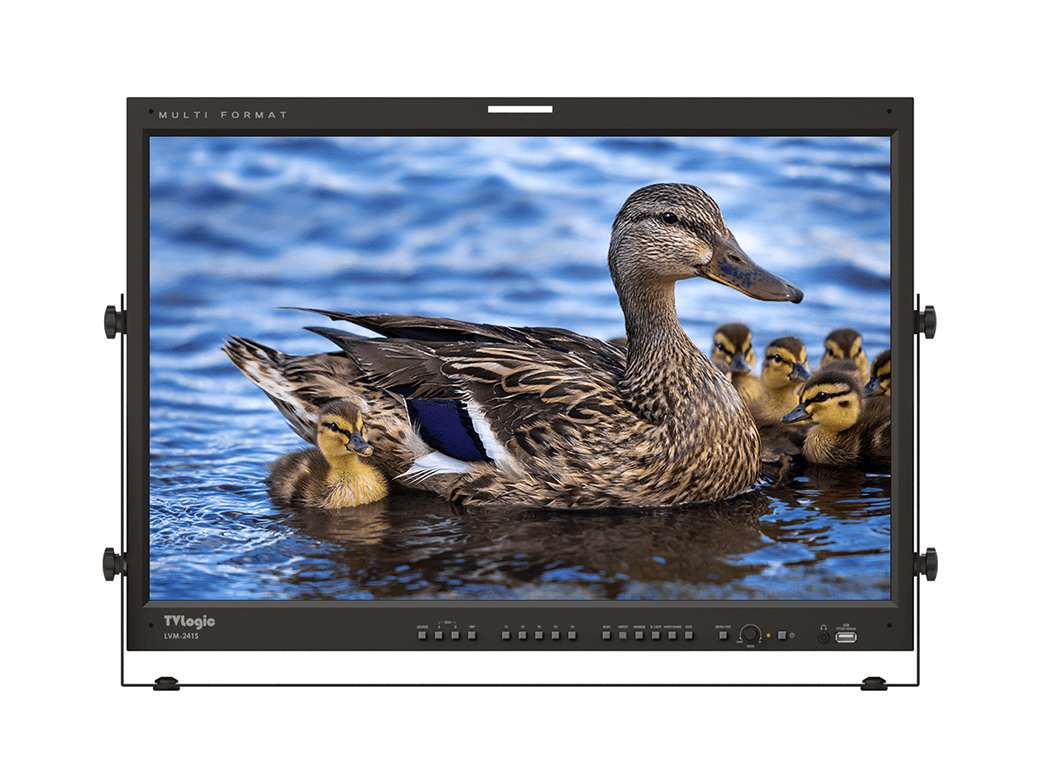

LVM-241S : 24” 高端液晶监视器
全新 LVM-241S 是我们24"顶级的技术监看机型, 配备 24 英寸 IPS LCD 面板,分辨率为 1920x1200,宽色域再现(DCI-P3覆盖高达93%), 增强的对比度和宽视角,这是其他 LCD 监视器所无法比拟的。完全重新设计的视频处理器提供强大的SDI双通道性能和无伪影图像。标准支持各种电影摄像机Log到线性 LUT、易于现场升级和全套图像处理功能。
显示规格
| 尺寸 | 24" |
| 分辨率 | 1920 X 1200 (16:10) |
| 像素间距 | 0.27mm |
| 色深 | 1.07B |
| 可视角度 | 178°(H) / 178°(V) |
| 亮度 | 400cd/m 2 |
| 对比度 | 1500 : 1 |

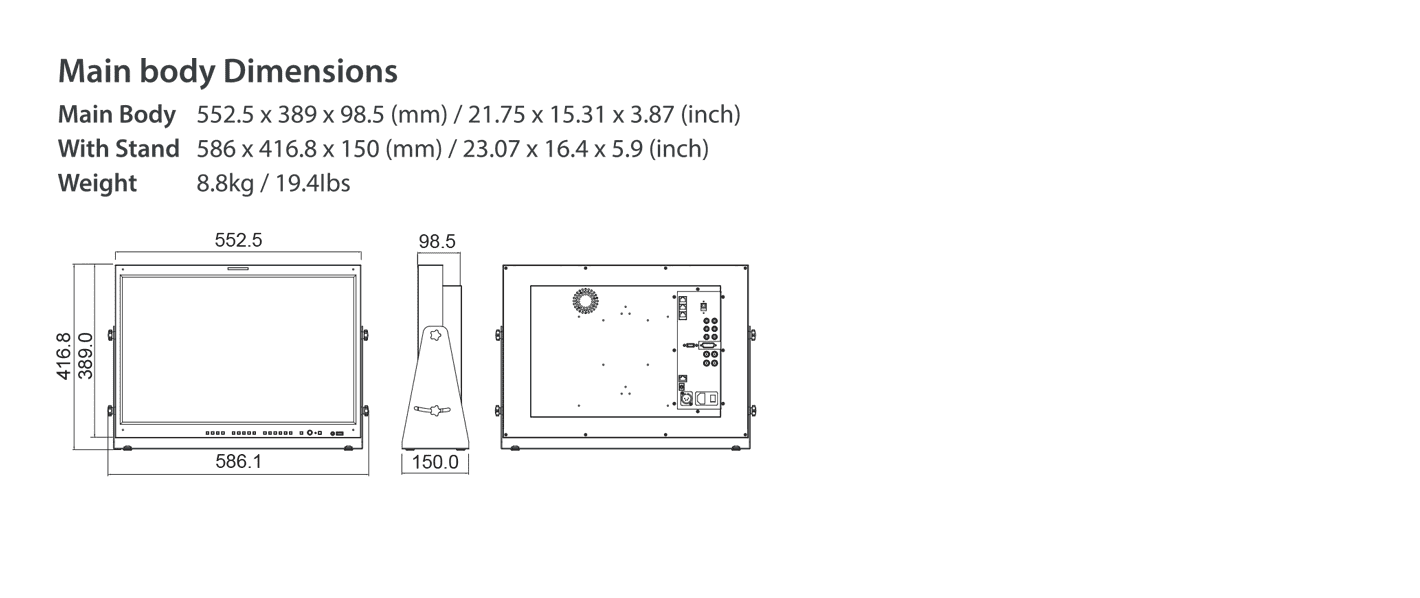

| 显示范围 | 518(H) x 324(V) mm |
输入信号
| 3 X BNC | Analog Input |
| 2 X BNC | 3G-SDI A/B Channel Input |
| 1 X HDMI | HDMI Input |
| 1 X DVI | DVI Input |
输出信号
| 3 X BNC | Analog(Loop Through Out) |
| 2 X BNC | SDI A/B Channel Output (Loop Through Out) |
| External Output Port |
音频
| Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Out | Analog stereo (Phone Jack) / Internal Speaker (Stereo) |
FPGA 功能
| 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, X3 Zoom(PBP), Camera Lut., Picture by picture |
Closed Caption
| CC-608 ANC, CC-608 LINE 21, CC-708, CC-KOR, OP42, OP47 |
校准
| TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import |
其他功能
| REMOTE | GPI (RJ45) |
| REMOTE | TVLogic’s specification |
| USB | Firmware update by USB memory stick |
| Ethernet | Ethernet Control support |
| Conversion | SDI-to-SDI |
可选配件
| Carrying Case, External Acrylic Filter, Gold Mount, ND Acrylic Filter, Rack Mount Kit(Single), V-Mount |
