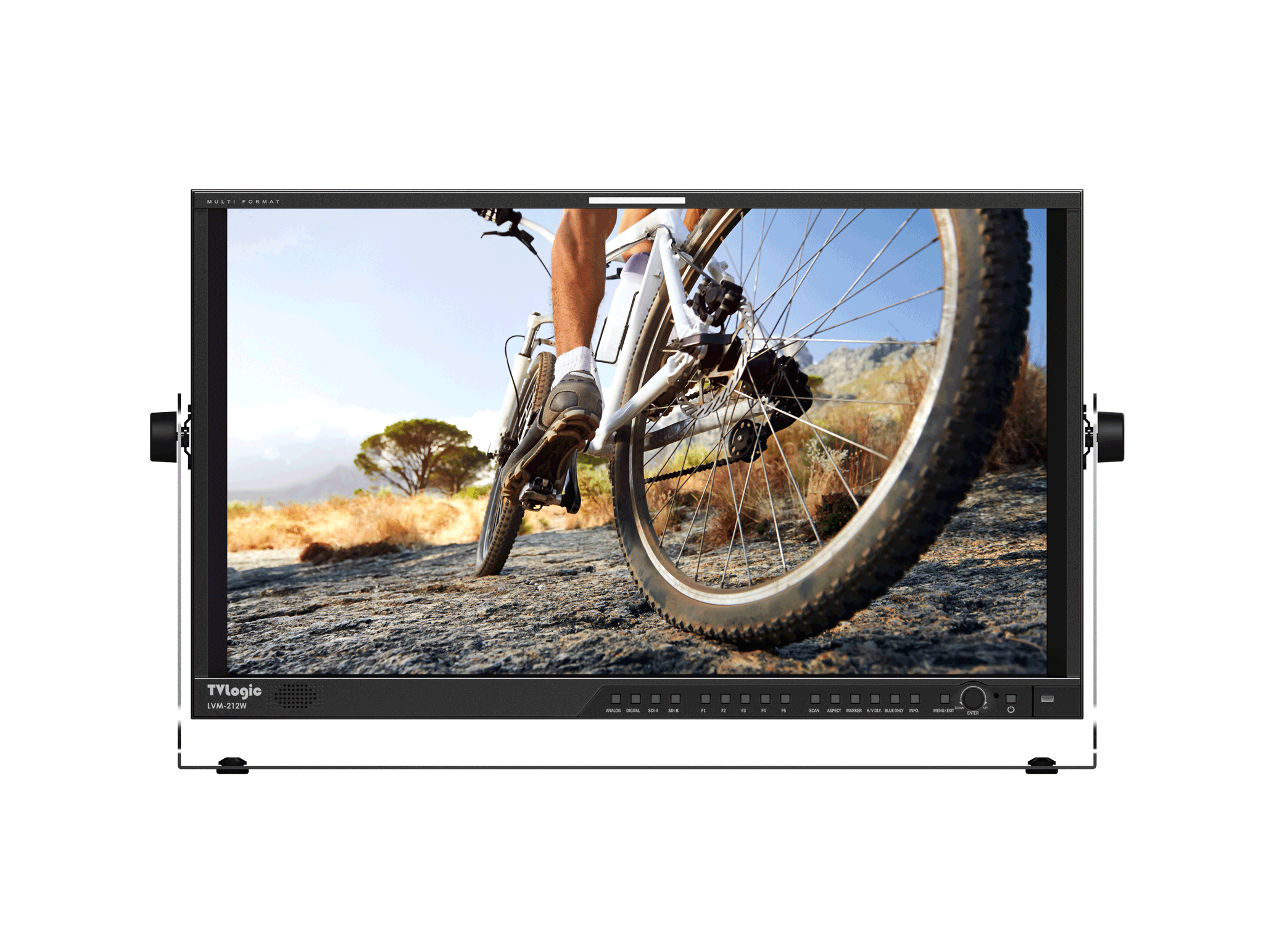

LVM-212W : 21" 专业液晶监视器

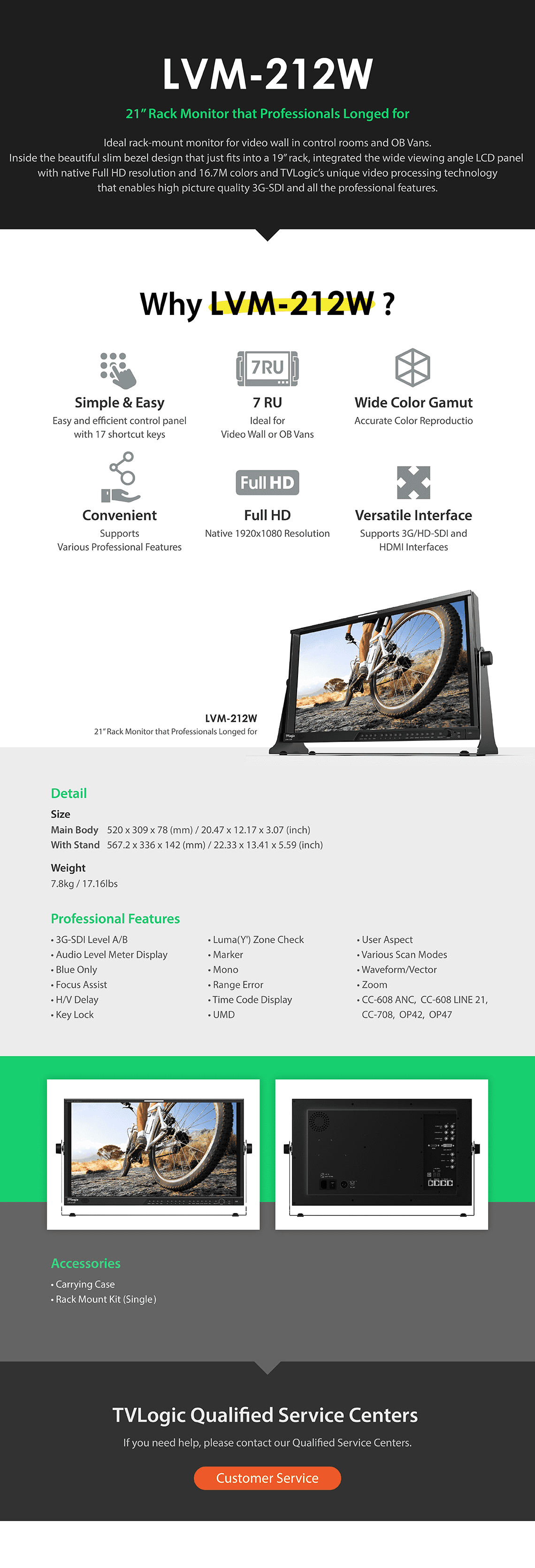

LVM-212W 是控制室和转播车中视频墙的理想机架安装监视器。非常漂亮的的超薄边框设计,刚刚适合安装在19"机架上, 集成广角液晶面板与原生全高清分辨率和16.7M颜色和TVLogic独特的视频处理技术,拥有3G-SDI高画质和所有专业功能。
显示规格
| 尺寸 | 21.5" |
| 分辨率 | 1920 x 1080 (16 : 9) |
| 像素间距 | 0.2475mm |
| 色深 | 16.7M |
| 可视角度 | 178°(H) / 178°(V) |
| 亮度 | 250cd/m 2 |
| 对比度 | 1000 : 1 |
| 显示范围 | 475(H) x 267(V) mm |
输入信号
| 3 X BNC | Analog Input (Composite) |
| 2 X BNC | 3G-SDI A/B Channel Input |
| 1 X HDMI | HDMI Input |
| 1 X DVI | DVI Input |
输出信号
| 3 X BNC | Analog(Loop Through Out) |
| 2 X BNC | 3G-SDI A/B Channel Output |
音频
| Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Out | Analog stereo (Phone Jack) / Internal Speaker (Mixed Mono) |
FPGA 功能
| 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, Zoom |
Closed Caption
| CC-608 ANC, CC-608 LINE 21, CC-708, OP42, OP47 |
校准
| TVLogic Color Calibration Utility |
其他功能
| REMOTE | TVLogic’s specification |
| USB | AUTO Calibration Firmware update by USB cable Firmware update by USB memory stick |
| Ethernet | Ethernet Control support |
| Conversion | SDI-to-SDI, |
可选配件
| Carrying Case, Rack Mount Kit(Single) |
