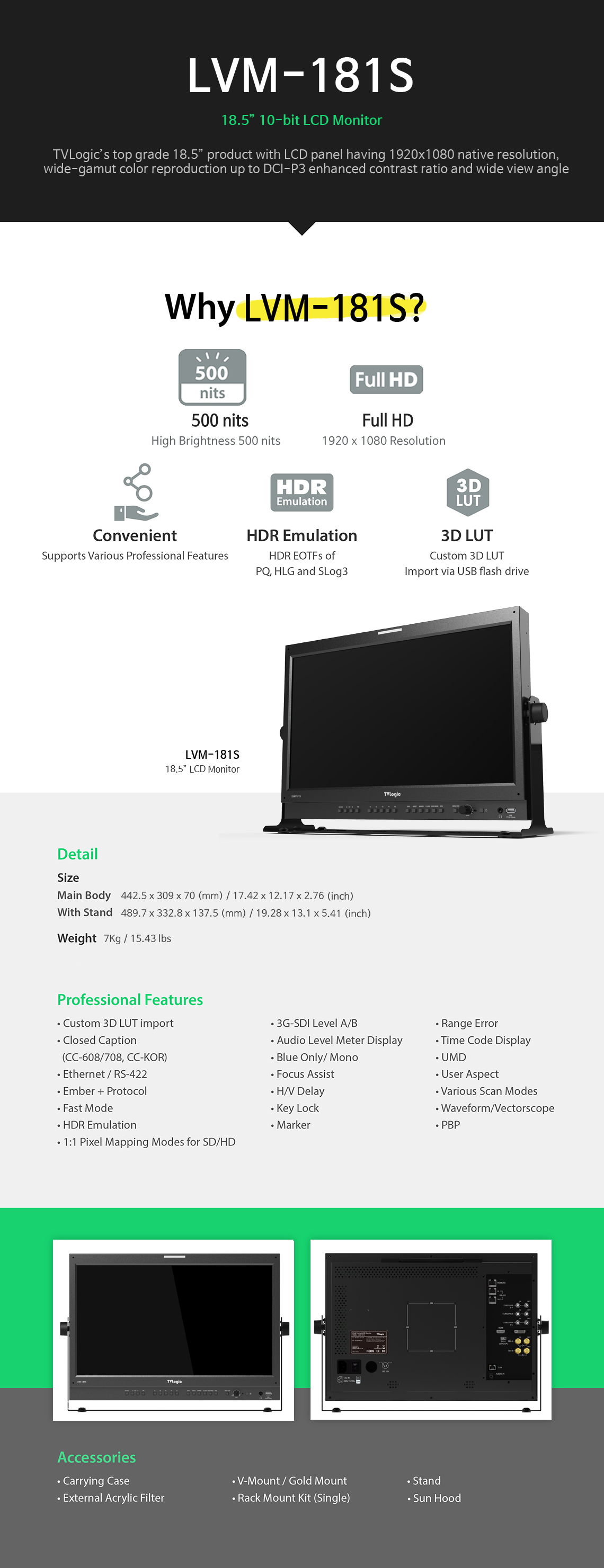

LVM-181S:18.5"全高清高端液晶监视器
LVM-181S带有18.5英寸IPS
LCD面板，具有1920x1080本机分辨率、亮度500nit、增强对比度和宽视角。完全重新设计的视频处理单元提供强大的双通道性能和无修饰图像再现。标准支持各种电影机对数到线性LUT、易于现场升级和全系列图像处理功能。
显示规格
| Size | 18.5" |
| Resolution | 1920 x 1080 (16 : 9) |
| Pixel Pitch | |
| Color Depth | 1.06B |
| Viewing Angle | 178°(H) / 178°(V) |
| Luminance | 500cd/m2 |
| Contrast Ratio | 1,000:1 |
| Display Area | 408(H) x 203(V) mm |
Input
| 3 X BNC | Analog Input (Component) |
| 2 X BNC | 3G-SDI A/B Channel Input |
| 1 X HDMI | HDMI Input |
| 1 X DVI | DVI Input |
Output
| 3 X BNC | Analog Output (Component) |
| 2 X BNC | 3G-SDI Output |
| 2 X BNC | HD SDI A/B Channel Output |
Input Signal
| 3G SDI | 2.970Gbps |
| HD SDI | 1.485Gbps |
| SD SDI | 270Mb/s |
| HDMI | 480i/480p/576i/576p/720p/1080i/1080p/640x480/ 720x400/800x600/1024x768/1280x1024/1366x768 |
| DVI Analog | 640x480/720x400/800x600/1024x768/1366x768 |
| DVI DP | 640x480/720x400/800x600/1024x768/1366x768 |
| DVI DH | X |
SDI Input Signal Formats
| SMPTE 425M-A/B | "1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) |
Audio
| Audio Out | Analog Stereo (Phone Jack), Internal Speaker(Stereo) |
| 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, X3 Zoom(PBP) |
Closed Captio
| CC-608 ANC, CC-608 LINE 21, CC-708, CC-KOR, OP42, OP47 |
Calibration
| TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import |
Other Functions
| REMOTE | GPI (RJ45) |
| USB | Firmware update by USB memory stick |
| Ethernet | Ethernet Control support |
Options
| Battery Bracket, Carrying Case, External Acrylic Filter, Gold Mount, Sun Hood, V-Mount |
