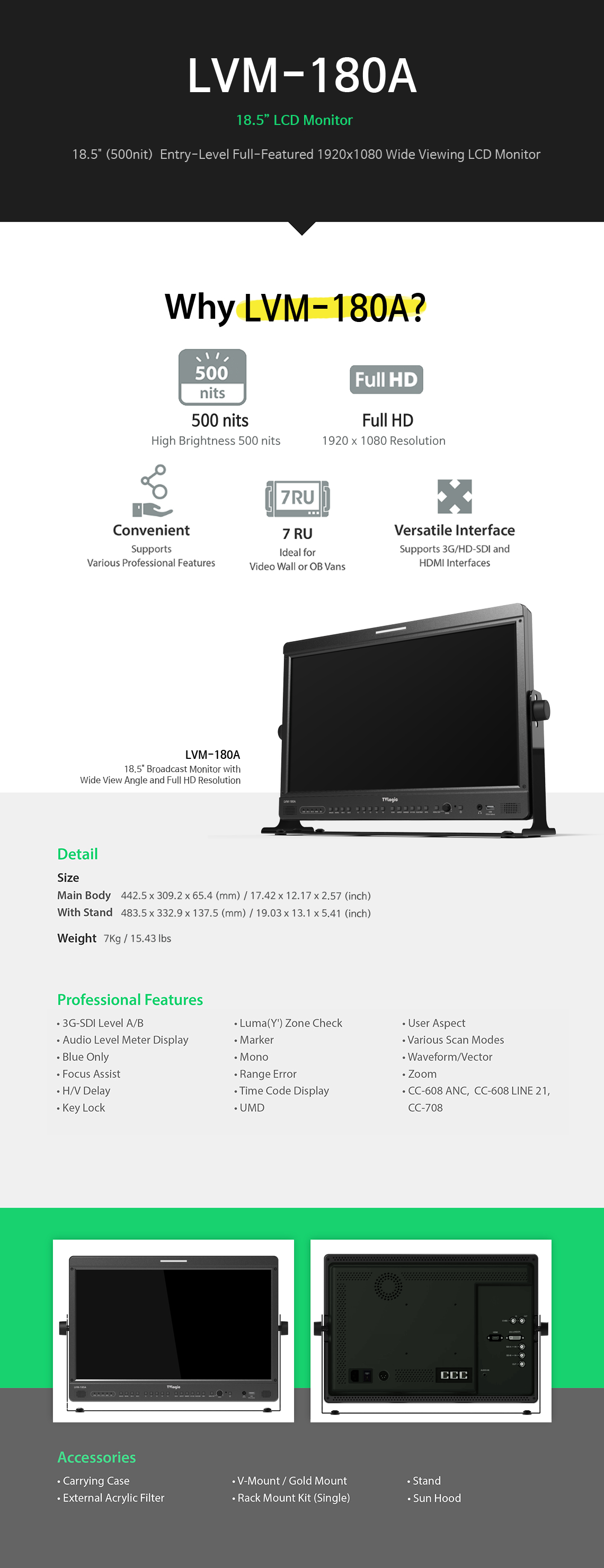

LVM-180A:18.5"全高清专业液晶监视器

LVM-180A带有18.5英寸IPS LCD面板,1920x1080全高清分辨率、500 nit、增强对比度和宽视角,完全重新设计的视频处理单元提供了强大的性能和无修饰的图像再现。标准支持各种电影机对数到线性LUT、易于现场升级和全系列图像处理功能。
显示规格
 Size  18.5"
 Resolution  1920 x 1080 (16 : 9)
 Pixel Pitch
 Color Depth  16.7M
 Viewing Angle  178°(H) / 178°(V)
 Luminance  500cd/m2
 Contrast Ratio  1,000:1
 Display Area  408(H) x 203(V) mm
输入信号
 1 X BNC  Analog Input (Composite)
 2 X BNC  3G-SDI A/B Channel Input
 1 X HDMI  HDMI Input
 1 X DVI  DVI Input
输出信号
 1 X BNC  Analog Output (Composite)
 1 X BNC  3G-SDI Output
Input Signal
 3G SDI  2.970Gbps
 HD SDI  1.485Gbps
 SD SDI  270Mb/s
 HDMI  480i/480p/576i/576p/720p/1080i/1080p/640x480/ 720x400/800x600/1024x768/1280x1024/1366x768
 DVI Analog  640x480/720x400/800x600/1024x768/1366x768
 DVI DP  640x480/720x400/800x600/1024x768/1366x768
 DVI DH  X
SDI Input Signal Formats
 SMPTE 425M-A/B  "1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF)
Audio
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Stereo)
FPGA Functions
 1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  Key Lock,  Marker,  Mono,  Range Error,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector,  X3 Zoom(PBP)
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708,  OP42,  OP47
Calibration
 TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import
Other Functions
 REMOTE   GPI (RJ45)
 USB   Firmware update by USB memory stick
 Ethernet   Ethernet Control support
Options
 Battery Bracket,  Carrying Case,  External Acrylic Filter,  Gold Mount,  Sun Hood,  V-Mount
