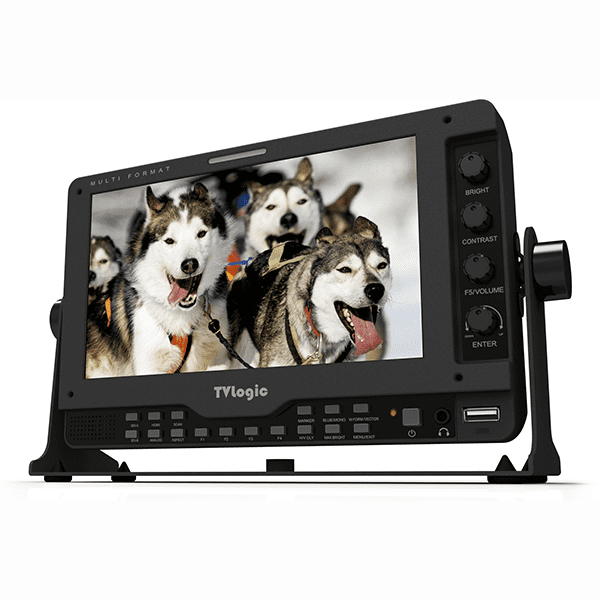

LVM-075A : 7" 全高清监视器

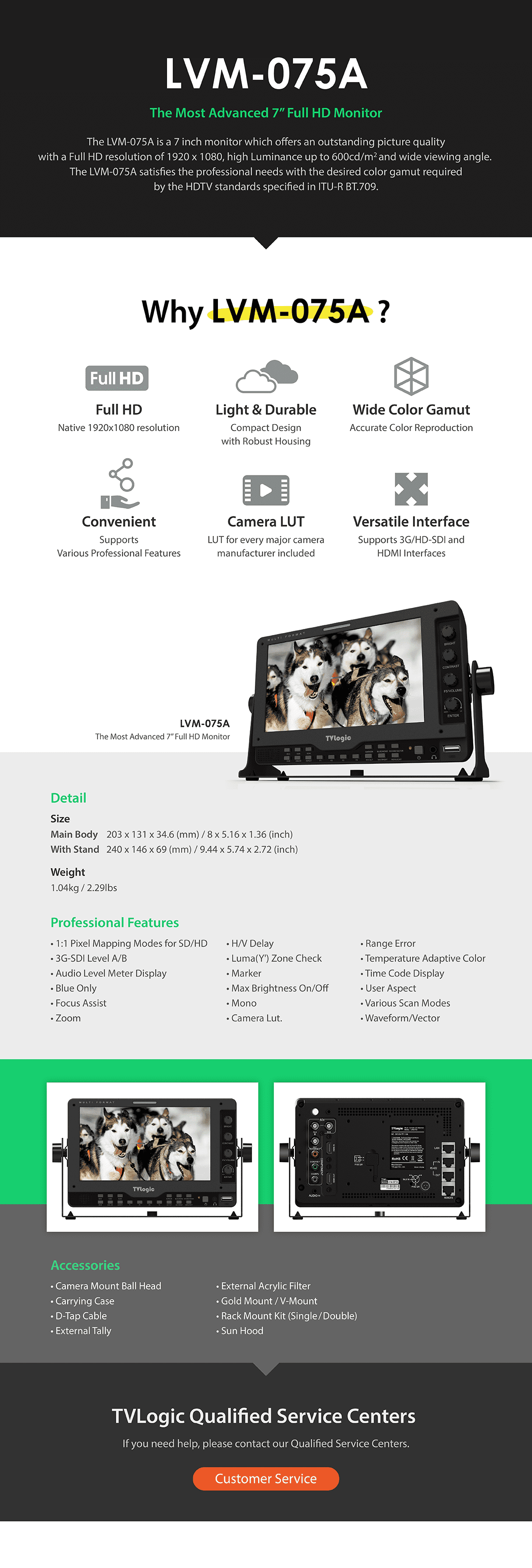

LVM-075A 具有 1920 x 1080 的全高清分辨率,可提供出色的画质。LVM-075A 支持用于摄像机和 Rec.709 色域的各种日志文件。所有专业功能,包括温度自适应颜色、波形/矢量示波器、对焦辅助、相机摄像机LUT、音频电平表、UMD 和闭合字幕也受支持。
显示规格
| 尺寸 | 7" |
| 分辨率 | 1920 x 1080 (16 : 9) |
| 像素间距 | 0.081mm |
| 色深 | 16.7M |
| 可视角度 | 170°(H) / 170°(V) |
| 亮度 | 600cd/m 2 |
| 对比度 | 800 : 1 |
| 显示范围 | 155(H) x 87(V) mm |
输入信号
| 3 X RCA | Analog Input (Component) |
| 2 X BNC | 3G-SDI A/B Channel Input |
| 1 X HDMI | HDMI Input |
输出信号
| 1 X BNC | SDI Channel Output (Loop Through Out) |
| 1 X HDMI | HDMI Output |
音频
| Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Out | Analog Stereo (Phone Jack), Internal Speaker(Mono) |
FPGA 功能
| 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Luma(Y') Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Temperature Adaptive Color, Time Code Display, User Aspect, Various Scan Modes, Waveform/Vector, Zoom, Camera Lut. |
Closed Caption
| CC-608 ANC, CC-608 LINE 21, CC-708 |
校准
其他功能
| REMOTE | TVLogic’s specification |
| USB | Firmware update by USB cable |
| Ethernet | Ethernet Control support |
| Conversion | HDMI-to-HDMI, HDMI-to-SDI, SDI-to-SDI, |
可选配件
| HDMI Bracket, Camera Mount, Ball Head, Carrying Case, External Tally, External Acrylic Filter, Gold Mount, Rack Mount Kit(Double), Rack Mount Kit(Single), Sun Hood, V-Mount |
