LUM-550M2 : 55" 4K/UHD HDR仿真监视器

LUM-550M2是一款4K/UHD监视器,具有55英寸的真UHD(3840x2160)分辨率和真10bit驱动器。它支持12G/6G/3G-SDI输入和HDMI 2.0输入。它支持各种专业功能,包括波形图/矢量示波器、CC-608、708和HDR仿真功能,HDR EOTF为PQ、HLG和SLog3
显示规格
尺寸 42.5"
分辨率 3840 x 2160 (16:9)
像素间距 0.2451mm
色深 1.07B (10bit)
可视角度 178°(H) / 178°(V)
亮度 500cd/m 2
对比度 1100 : 1

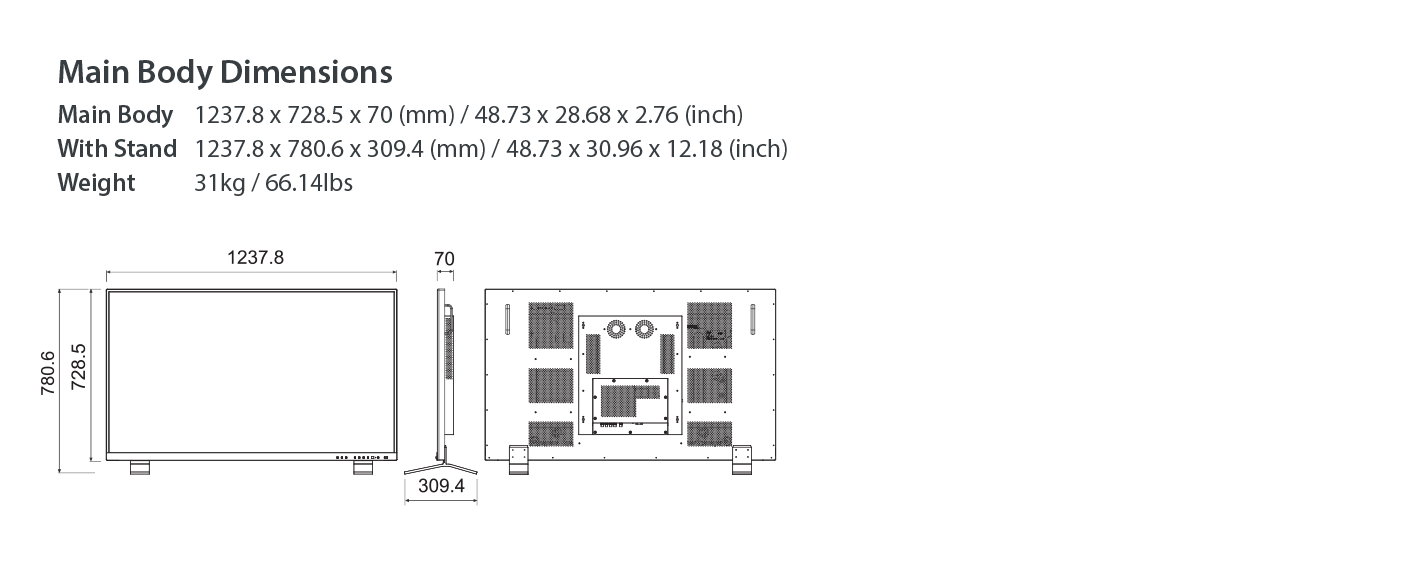

显示范围 1209.6(H) × 680.40(V) mm

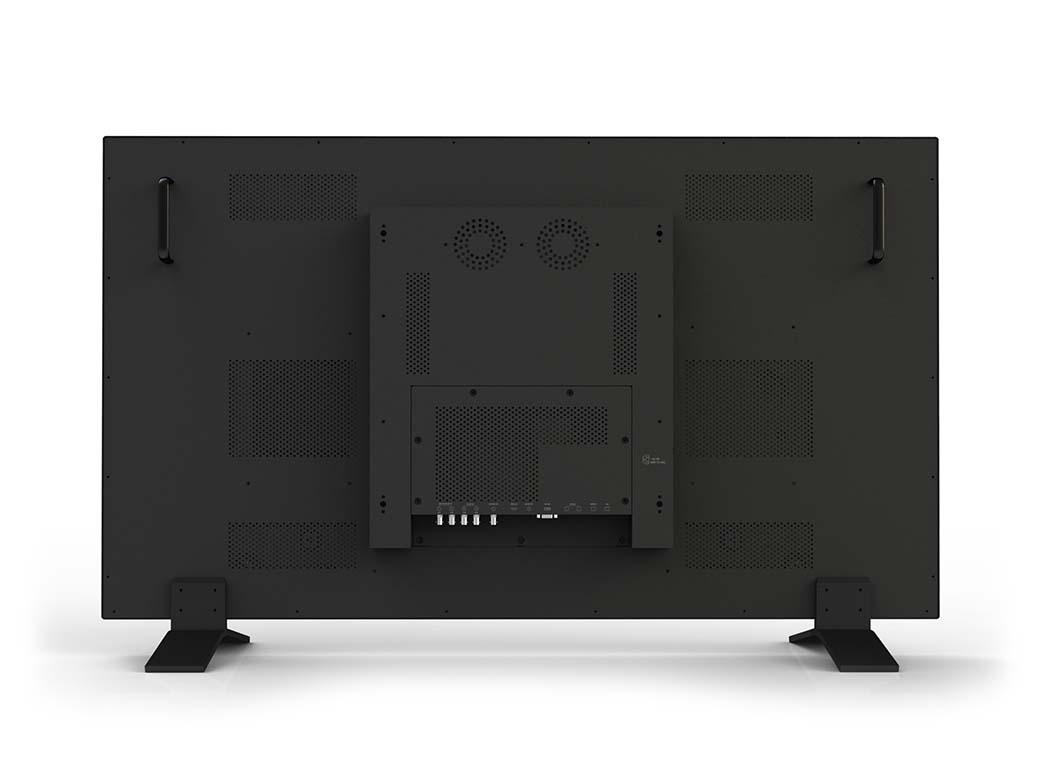

输入接口
4 X BNC 12G/3G/HD/SD SDI Input 2Ch 3G/HD SDI Input 2Ch
1 x HDMI HDMI V2.0 Input 1Ch
输出接口
1 x BNC 12G/3G/HD/SD SDI Output 1Ch(SDI A/B Selected channel output)
12G Mode : 3840x2160 60p/59.94p/50p (All Input Format Converted to 12G-SDI)
输入信号
12G-SDI 12Gb/s
6G-SDI 6Gb/s
3G-SDI 2.970Gb/s
HD-SDI 1.485Gb/s
HDMI 2160p/1080p/720p (HDMI 2.0)
SDI信号输入格式
SMPTE ST2048-1 4096x2160 (50~60p)
SMPTE ST2082-10Mode1 3840x2160 60p/59.94p/50p (12G-SDI x 2Ch) 4096x2160 50~60p
SMPTE ST2081-10 Mode1 3840x2160 30p/29.97p/25p/24p*/23.98p* (6G-SDI x 2Ch)
SMPTE ST425-5 3840x2160 60p/59.94p/50p (3G-SDI x 4Ch)
SMPTE ST274 3840x2160 30p/29.97p/25p/24p*/23.98p* (HD-SDI x 4Ch)
SMPTE ST425 1920x1080 60p/59.94p/50p (3G-SDI LEVEL A)
1920x1080 60i/59.94i/50i (3G-SDI LEVELA)
1920x1080 30p/29.97p/25p/24p*/23.98p* (3G-SDI LEVEL B)
1280x720 60p/59.94p/50p (3G-SDI LEVEL B)
SMPTE ST2048-1:2110 2048x1080 23.98p/24p/25p/29.97p/30p
SMPTE 274M 1920x1080 30p/29.97p/25p/24p*/23.98p*
1920x1080 60i/59.94i/50i
SMPTE-296M 1280x720 60p/59.94p/50p
SMPTE-259M 720x487 59.94i / 720x576 50i
* 24P/23.97P : 60p/59.94p Frame-rate Converted Display
HDMI信号输入格式
HDMI 2.0 3840x2160 60p/59.94p/50p(RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 8/10/12bit, YCbCr 4:2:0 8bit)
HDMI 1.4 3840x2160 30p/29.97p/25p/24p*/23.98p* (RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 8/10/12bit)
HDMI 1.2 1920x1080 60p/59.94p/50p/30p/29.97p/25p/24p*/23.98p*
1920x1080 60i/59.94i/50i
1280x720 60p/59.94p/50p
(RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 8bit)
音频
音频输入 SDI Embedded Audio (Group, Ch Selectable)
音频输出 External Output Port (3.5m Phone Jack)
电源
电源 100~240V, 1.3~0.6A/ 50/60Hz
电源功耗(Approx.) 96Watts (Max.)
工作温度 0°C to 40°C (32°F to 104°F )
储存温度 -20°C to 60°C (-4°F to 140°F )
附件 AC Power Cable / IR Remote / Stand
