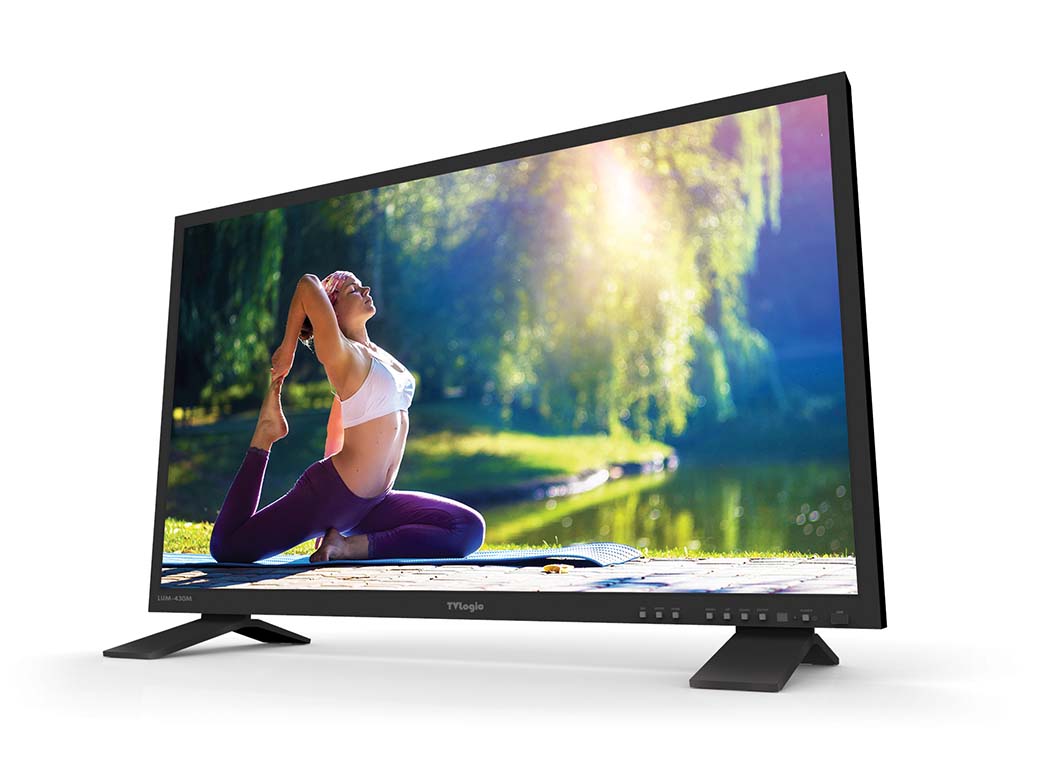

LUM-550M2 : 55" 4K/超高清 HDR功能监视器
LUM-550M2是一款4K/UHD监视器，具有55英寸的真UHD（3840x2160）分辨率和真10bit驱动器。它支持12G/6G/3G-SDI输入和HDMI 2.0输入。它支持各种专业功能，包括波形图/矢量示波器、CC-608、708和HDR仿真功能，HDR EOTF为PQ、HLG和SLog3
显示规格
| 尺寸 | 42.5" |
| 分辨率 | 3840 x 2160 (16:9) |
| 像素间距 | 0.2451mm |
| 色深 | 1.07B (10bit) |
| 可视角度 | 178°(H) / 178°(V) |
| 亮度 | 1000cd/m 2 |
| 对比度 | 1000 : 1 |

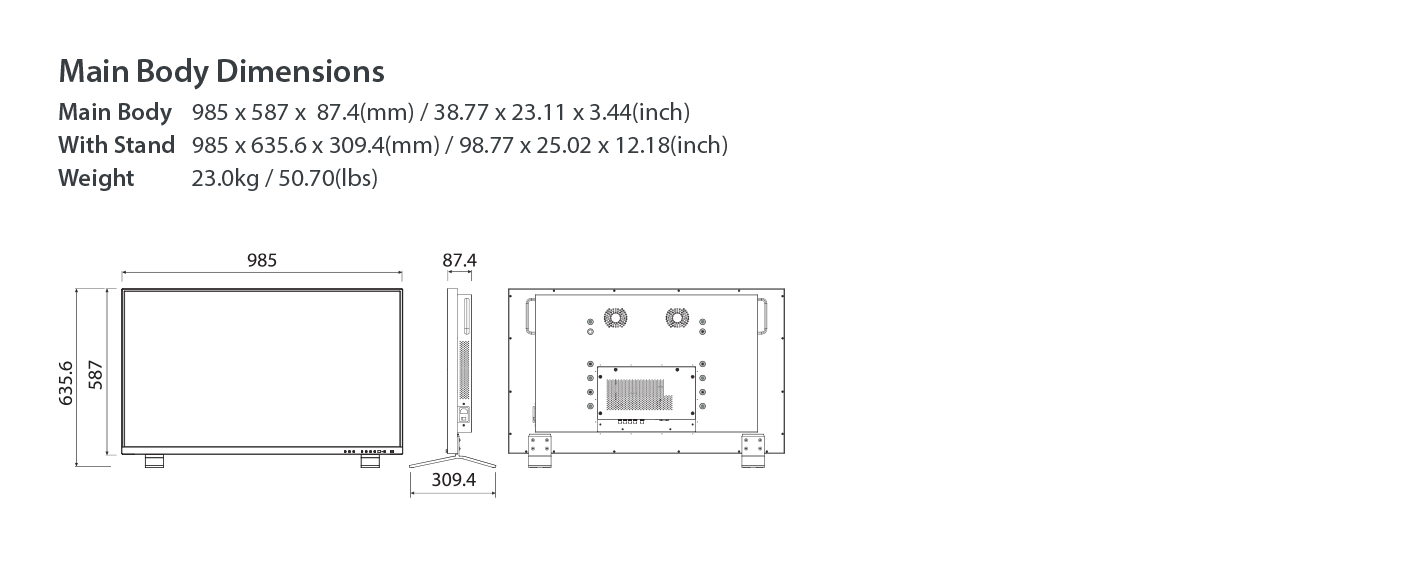

| 显示范围 | 962(H) × 554(V) mm |

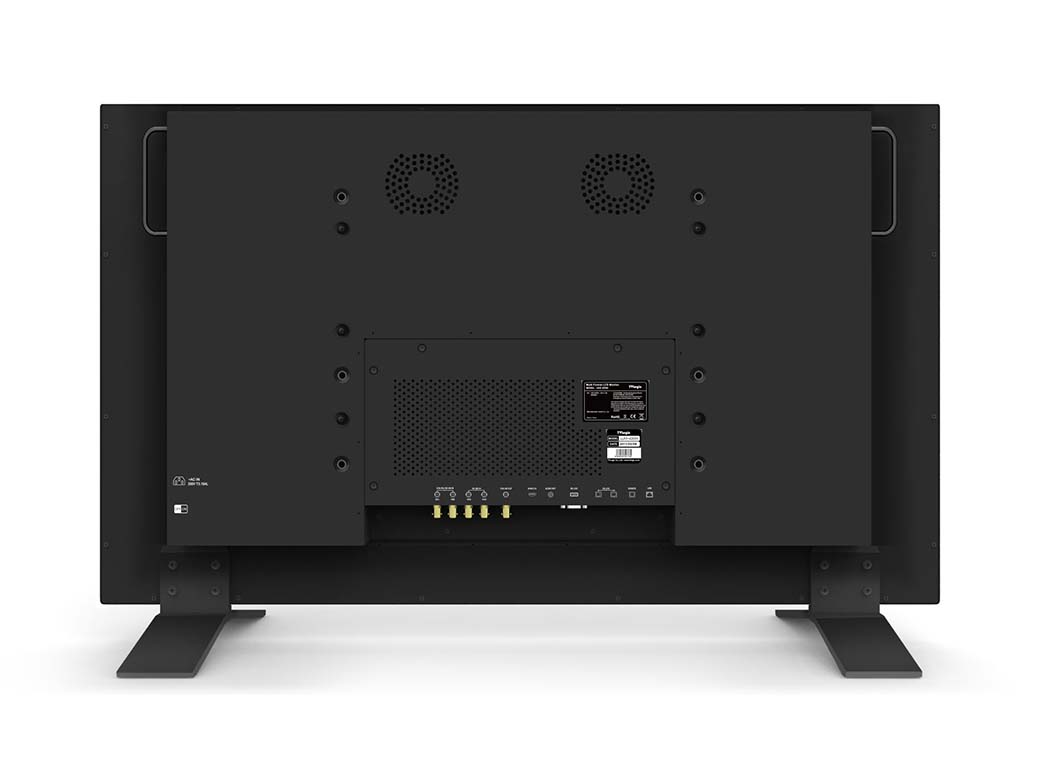

输入接口
| 4 X BNC | 12G/3G/HD/SD SDI Input 2Ch 3G/HD SDI Input 2Ch |
| 1 x HDMI | HDMI V2.0 Input 1Ch |
输出接口
| 1 x BNC | 12G/3G/HD/SD SDI Output 1Ch(SDI A/B Selected channel output) 12G Mode : 3840x2160 60p/59.94p/50p |
输入信号
| 12G-SDI | 12Gb/s |
| 6G-SDI | 6Gb/s |
| 3G-SDI | 2.970Gb/s |
| HD-SDI | 1.485Gb/s |
| HDMI | 2160p/1080p/720p (HDMI 2.0) |
SDI信号输入格式
| SMPTE ST2048-1 | 4096x2160 (50~60p) |
| SMPTE ST2082-10Mode1 | 3840x2160 60p/59.94p/50p (12G-SDI x 2Ch) |
| SMPTE ST2081-10 Mode1 | 3840x2160 30p/29.97p/25p/24p*/23.98p* (6G-SDI x 2Ch) |
| SMPTE ST425-5 | 3840x2160 60p/59.94p/50p (3G-SDI x 4Ch) |
| SMPTE ST274 | 3840x2160 30p/29.97p/25p/24p*/23.98p* (HD-SDI x 4Ch) |
| SMPTE ST425 | 1920x1080 60p/59.94p/50p (3G-SDI LEVEL A) 1920x1080 60i/59.94i/50i (3G-SDI LEVEL A) 1920x108030p/29.97p/25p/24p*/23.98p* (3G-SDI LEVEL B) 1280x720 60p/59.94p/50p (3G-SDI LEVEL B) |
| SMPTE ST2048-1:2110 | 2048x1080 23.98p/24p/25p/29.97p/30p |
| SMPTE 274M | 1920x1080 30p/29.97p/25p/24p*/23.98p* 1920x1080 60i/59.94i/50i |
| SMPTE-296M | 1280x720 60p/59.94p/50p |
| SMPTE-259M | 720x487 59.94i / 720x576 50i |
| * 24P/23.97P : 60p/59.94p Frame-rate Converted Display | |
HDMI信号输入格式
| HDMI 2.0 | 3840x2160 60p/59.94p/50p(RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 8/10/12bit, YCbCr 4:2:0 8bit) |
| HDMI 1.4 | 3840x2160 30p/29.97p/25p/24p*/23.98p* (RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 8/10/12bit) |
| HDMI 1.2 | 1920x1080 60p/59.94p/50p/30p/29.97p/25p/24p*/23.98p* 1920x1080 60i/59.94i/50i 1280x720 60p/59.94p/50p (RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 8bit) |
音频
| 音频输入 | SDI Embedded Audio (Group, Ch Selectable) |
| 音频输出 | External Output Port (3.5m Phone Jack) |
电源
| 电源 | 100~240V, 1.3~0.6A/ 50/60Hz |
| 电源功耗(Approx.) | 96Watts (Max.) |
| 工作温度 | 0°C to 40°C (32°F to 104°F ) |
| 储存温度 | -20°C to 60°C (-4°F to 140°F ) |
| 附件 | AC Power Cable / IR Remote / Stand |
