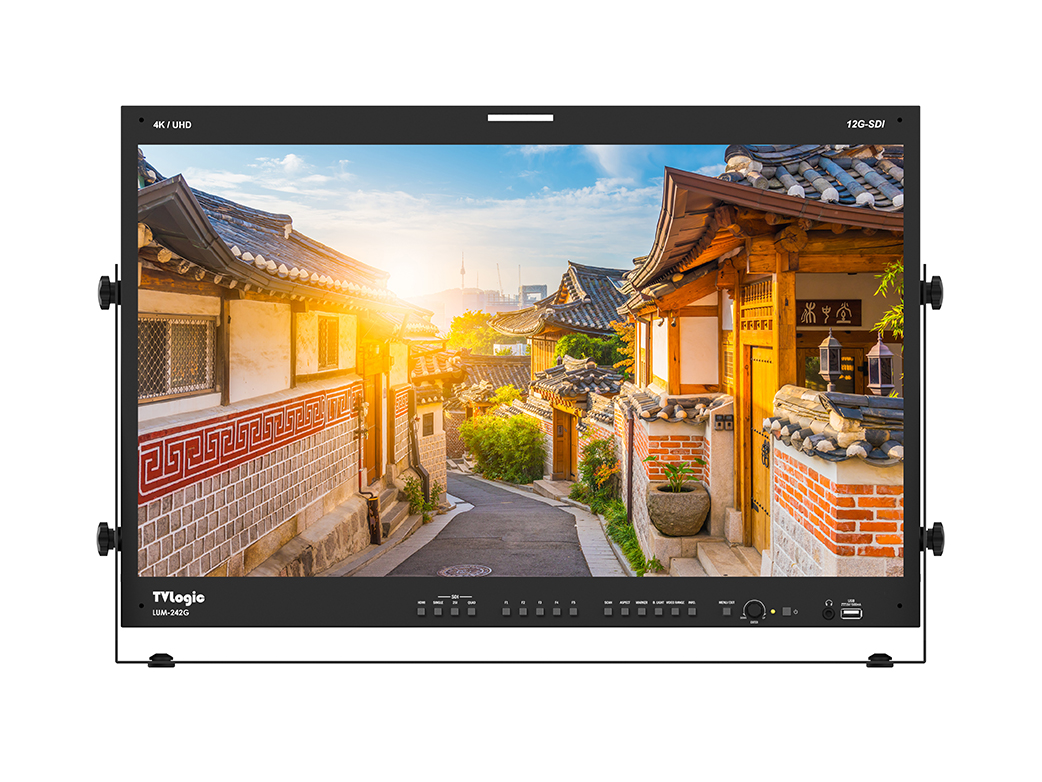

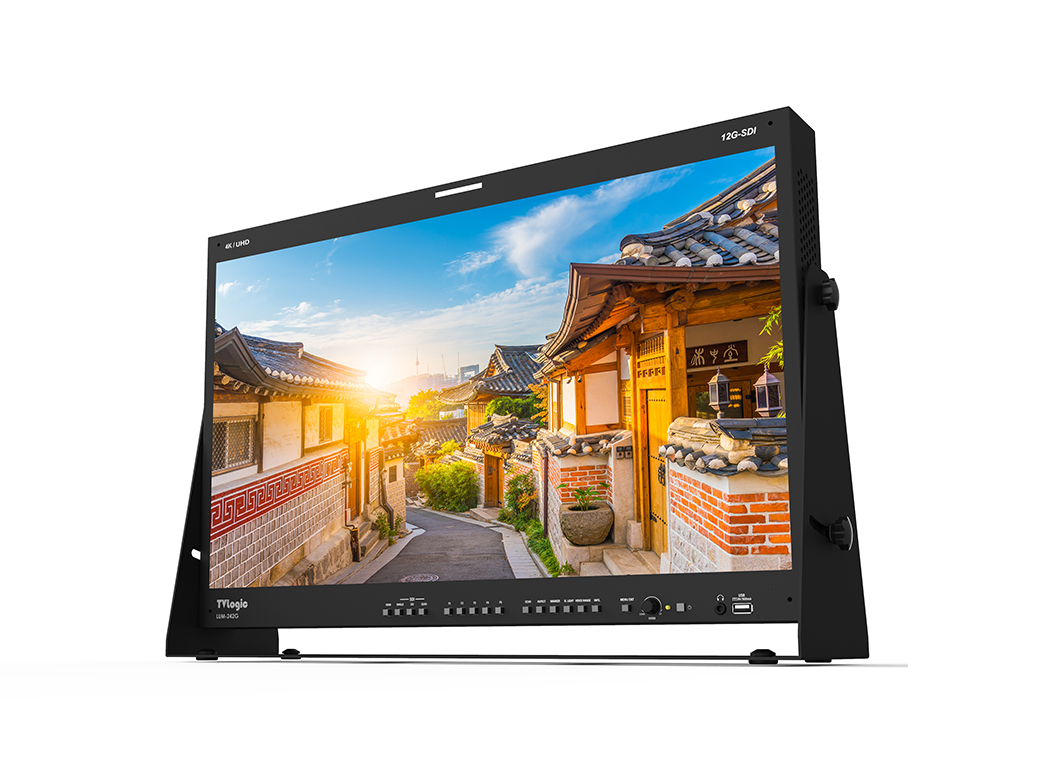

LUM-242G : 24''4K/UHD HDR仿真监视器

LUM-242G是一款24英寸超高清分辨率(3840 x 2160)监视器,最大亮度为500nit,对比度为1200:1,色域宽,视角宽。配备4个BNC(2×12G-SDI+2×3G-SDI)和HDMI 2.0接口,通过单路12G-SDI、四路3G-SDI和HDMI 2.0支持高达4K/60p的各种视频格式。除了波形和矢量等各种专业功能外,LUM-242G还提供HDR仿真功能,包括PQ、HLG和SLog3的HDR EOTF。
显示规格
尺寸 24"
分辨率 3840 x 2160 (16:9)
像素间距 0.137mm
色深 1.07B (10bit)
可视角度 178°(H) / 178°(V)
亮度 500cd/m 2
对比度 1200 : 1
显示范围 526(H) X 296(V)mm
输入接口
4 X BNC 12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input
1 x HDMI HDMI Input (HDMI 2.0)
输出接口
4 X BNC 12G-SDI A/B, 3G-SDI C/D Channel (Loop Through Out)
输入信号
12G-SDI 12Gb/s
6G-SDI 6Gb/s
3G-SDI 2.970Gb/s
HD-SDI 1.485Gb/s
HDMI 480p / 720p / 1080p / 2160p
SDI信号输入格式
SMPTE ST 2082 3840x2160 (60/50/59.94p)
SMPTE ST 2081 3840x2160 (30/25/24p/23.98p/29.97p)
SMPTE-425M-A/B 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
SMPTE-274M 1080i(60/59.94/50)
1080p(30/29.97/25/24/24sF/23.98/23.8sF)
SMPTE-296M 720p(60/59.94/50)
SMPTE-125M 480i(59.94)
ITU-R BT.656 576i(50)
音频
音频输入 Analog stereo
音频输出 Analog Stereo (Phone Jack)
电源
电源 DC 12V /24V / AC 100~240V(50~60Hz)
电源功耗(Approx.) TBD
工作温度 0°C to 35°C (32°F to 95°F )
储存温度 -20°C to 60°C (-4°F to 140°F )
附件 AC Power Cable / Stand
