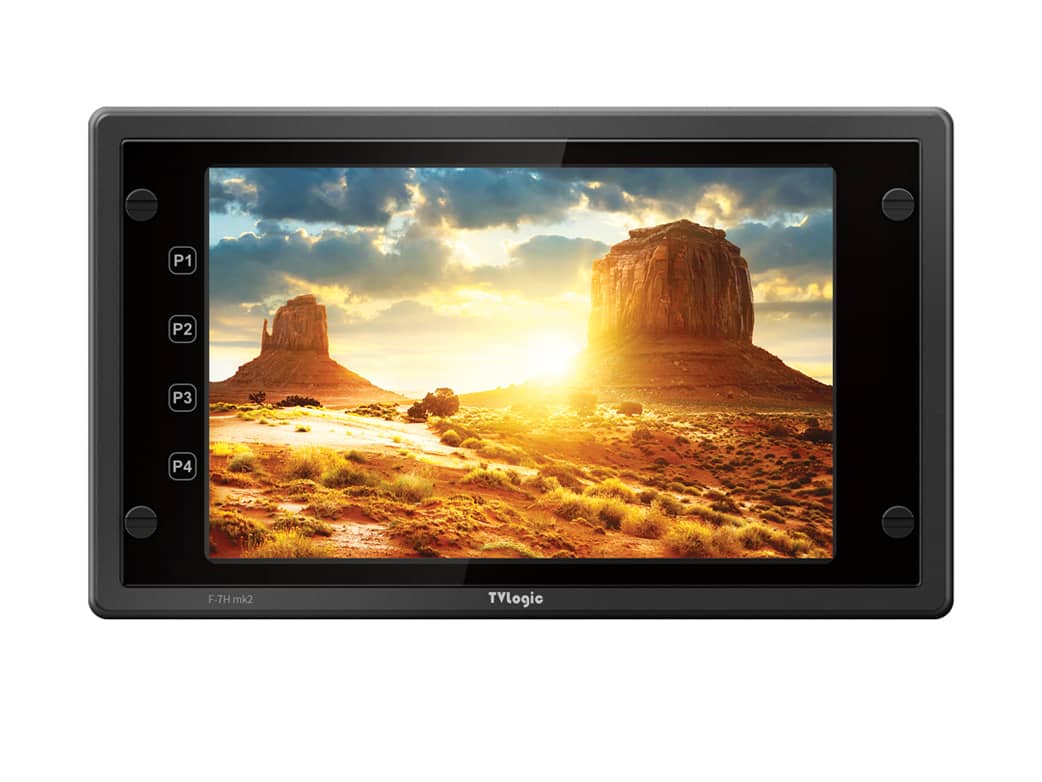

F-7H mk2 : 超高亮度的 7' 现场监视器
具有增强的锐度
F-7H mk2 是一款 7“ 1920x1080 分辨率的现场监视器,提供强大全面的功能。亮度为3,600nits,通过新的图像处理引擎增强了锐度和峰值提升功能。F-7H mk2 提供与前代型号相同的高质量图像和专业功能, 通过防眩光膜使得反射效果极小，通过前触摸键更快地进入频繁的预设模式。
显示规格
| 尺寸 | 7" |
| 分辨率 | 1920 X 1080(16:9) |
| 像素间距 | 0.078(H)x0.078(V)mm |
| 色深 | 16.7M |
| 可视角度 | 160°(H) / 160°(V) |
| 亮度 | 3,600cd/m 2 |
| 对比度 | 1,200:1 |
| 显示范围 | 151.2(H)×94.5(V) mm |
输入信号
| 1 X BNC | 3G-SDI Input |
| 1 X HDMI | HDMI Input |
输出信号
| 1 X BNC | 3G-SDI Output |
| 1 X HDMI | HDMI Output |
音频
| Audio In | Embedded Audio |
| Audio Out | Analog Stereo (Phone Jack) |
FPGA 功能
| , 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Key Lock, Luma(Y') Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Time Code Display, User Aspect, Various Scan Modes, Waveform/Vector, Zoom, Camera Lut., Arri Camera Metadata |
Closed Caption
校准
| , 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import |
其他功能
| USB | Firmware update by USB cable | Firmware update by USB memory stick |
| Ethernet | ||
| Conversion | HDMI-to-HDMI, HDMI-to-SDI, SDI-to-HDMI, SDI-to-SDI, | |
可选配件
| Battery Bracket, HDMI Bracket, Camera Mount, Ball Head, Carrying Case, D-Tap Cable, External Acrylic Filter, Gold Mount, Sun Hood, L-Type BNC Connector , V-Mount |
