F-10A : 10''全高清HDR现场监视器

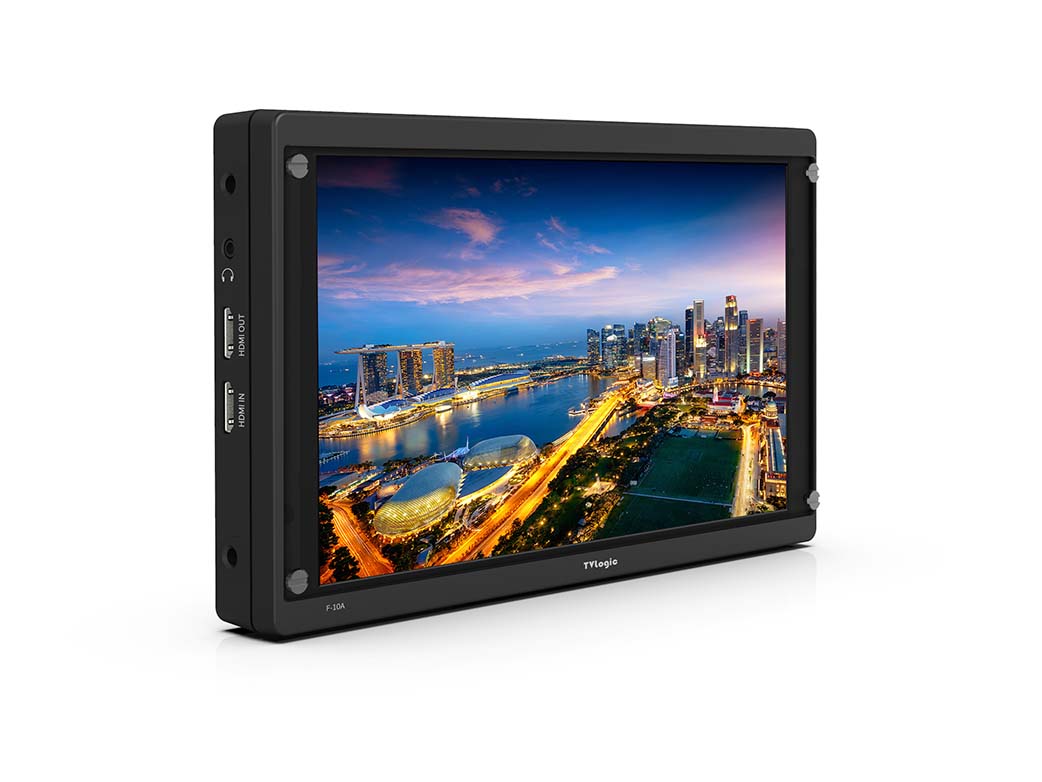

The F-10A is the new 10" field monitor with HDR capability and Full HD resolution. Designed for versatile field production applications, the F-10A offers nearly half the weight and slimmer design compared to its class size. It also supports HDMI 2.0 and HDCP 2.2 to support 4K HDR 60Hz and supports various video signals (3G HD/SD-SDI, HDMI). In addition, it provides various professional functions such as HDMI ↔ SDI conversion output, Camera LUTs, Arri Metadata Display, Waveform/Vectorscope, H/V Flip, Auto Flip, Scan and Image Overlay.
Now Shipping!!!!
显示规格
| 尺寸 |
10" |
| 分辨率 |
1920 X 1080(16:9) |
| 像素间距 |
0.11475(H) X 0.11475(V)mm |
| 色深 |
16.7M |
| 可视角度 |
160°(H) / 160°(V) |
| 亮度 |
300cd/m
2
|
| 对比度 |
1,000 : 1 |
| 显示范围 |
220.32mm(H) x 123.93mm(V) |

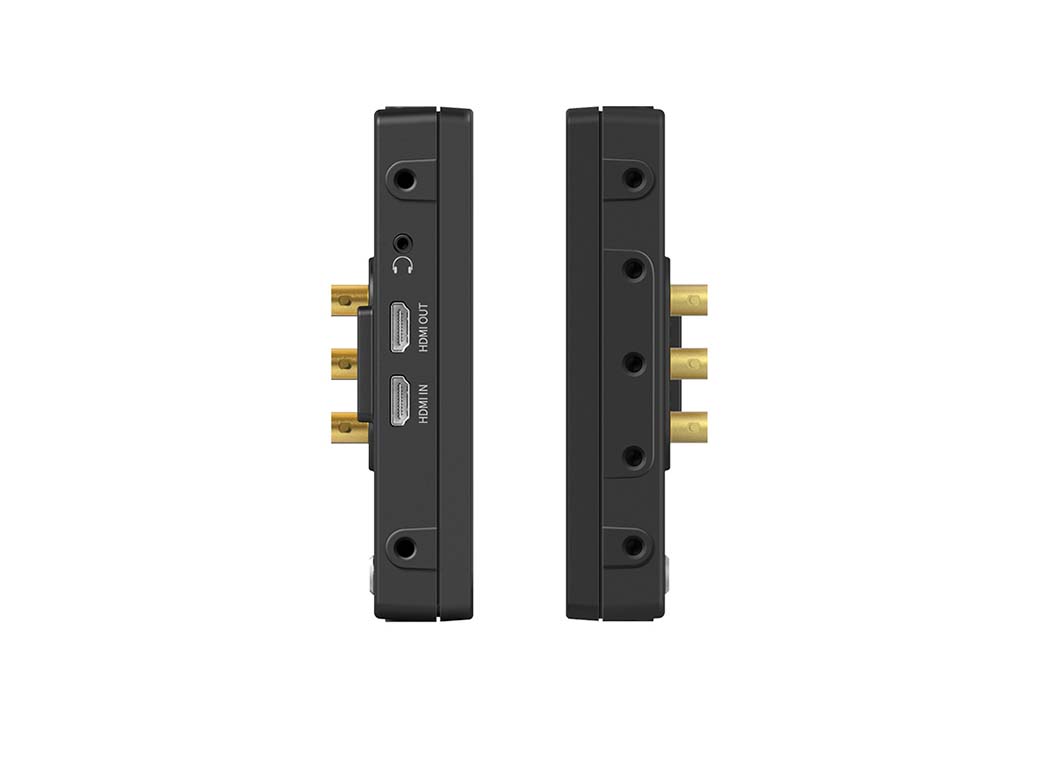

输入接口
| 2 X BNC |
3G-SDI （1 x Selectable I/O） |
| 1 X HDMI |
HDMI 2.0 Input |
输出接口
| 2 X BNC |
3G-SDI （1 x Selectable I/O）
HDMI to SDI conversion output |
| 1 X HDMI |
HDMI 1.3 Output,
SDI to HDMI conversion output |
输入信号
| 3G-SDI |
2.970Gb/s |
| HD-SDI |
1.485Gb/s |
| SD-SDI |
270Mb/s |
| HDMI |
2160p(60/30)/1080p(60/59.94/50/30/25/24/23.98)/1080i(60/59.94/50)/720p(60/50)/480i(60)/480p(60)/576i(50)/576p(50) |
SDI信号输入格式
| SMPTE-425M-A/B |
1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) |
| SMPTE-274M |
1080i(60/59.94/50)
1080p(30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE-296M |
720p(60/59.94/50) |
| SMPTE-125M |
480i(59.94) |
| ITU-RBT.656 |
576i(50) |
| 2K Format |
2048×1080p(24/24sF/23.98/23.98sF) |
音频
| 音频输入 |
Embedded Audio |
| 音频输出 |
Analog Stereo(Phone Jack) |
电源 & 温度
| 电源 |
DC 12V 1.2A / 34V 0.4A |
| 电源功耗(Approx.) |
14 Watts (Max.) |
| 工作温度 |
0°C to 45°C(32°F to 113°F) |
| 储存温度 |
-20°C to 60°C(-4°F to 140°F) |
附件
D-Tap Cable
Camera Mount
L-Type BNC Connector
|
