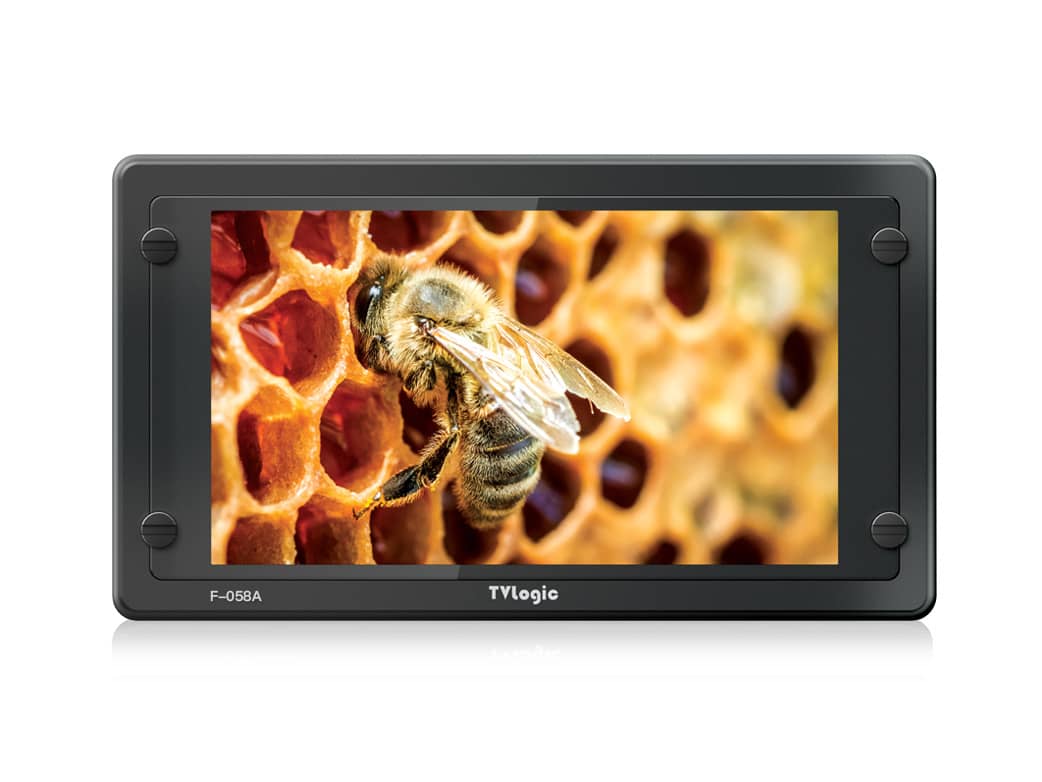

F-058A : 5.5” LCD全能的现场监视器
F-058A 是一款紧凑轻型的现场生产监视器,分辨率为 1920 x 1080,极佳的可视角度, 最大亮度为 500nit。配备了新的图像处理引擎, F-058A再现了更好的锐度和峰值推进能力帮助对焦。它还支持3G-SDI和HDMI 1.3接口的各种视频格式。还支持专业功能,如波形/矢量示波器、对焦辅助、3D LUT 导入、相机日志和 HDR 模拟。
显示规格
| 尺寸 | 5.5" |
| 分辨率 | 1920 X 1080(16:9) |
| 像素间距 | 0.0213(H) X 0.063(V)mm |
| 色深 | 16.7M |
| 可视角度 | 160°(H) / 160°(V) |
| 亮度 | 500cd/m 2 |
| 对比度 | 1,000 : 1 |
| 显示范围 | 122.7(H) × 69(V) mm |
输入信号
| 1 X BNC | 3G-SDI Input |
| 1 X HDMI | HDMI Input |
输出信号
| 1 X BNC | 3G-SDI Output |
| 1 X HDMI | HDMI Output |
音频
| Audio In | Embedded Audio |
| Audio Out | Analog Stereo (Phone Jack) |
FPGA 功能
| , 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Key Lock, Luma(Y') Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Time Code Display, User Aspect, Various Scan Modes, Waveform/Vector, Zoom, Camera Lut., Arri Camera Metadata |
Closed Caption
校准
| , 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import |
其他功能
| USB | Firmware update by USB cable | Firmware update by USB memory stick |
| Ethernet | ||
| Conversion | HDMI-to-HDMI, HDMI-to-SDI, SDI-to-HDMI, SDI-to-SDI, | |
可选配件
| Battery Bracket, HDMI Bracket, Camera Mount, Ball Head, Carrying Case, D-Tap Cable, External Acrylic Filter, Gold Mount, Sun Hood, L-Type BNC Connector , V-Mount |
